Fleetwood RV Discovery Motor Home Class A - Diesel RVs For Sale

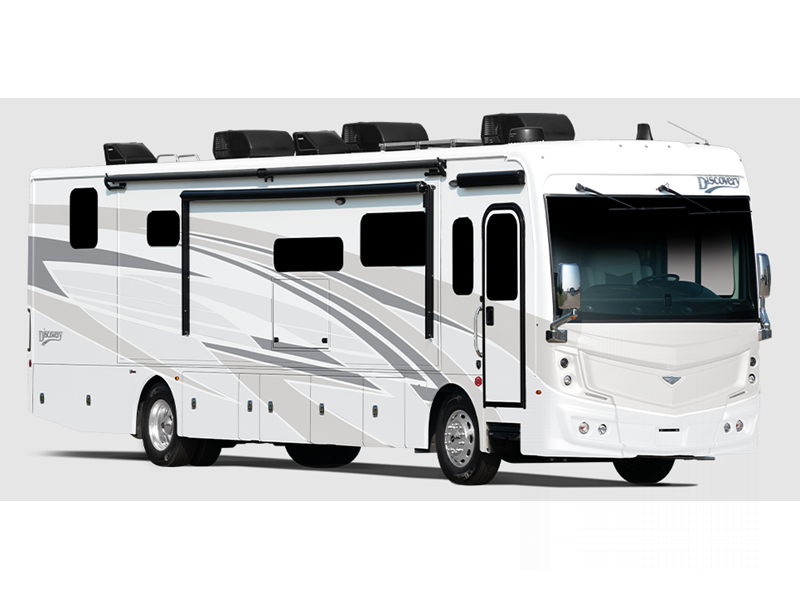

The Discovery Class A diesel motorhomes have an unbeatable combination of fantastic drivability and modern amenities to make you feel at home! The 360HP engine will power your trips both near and far, and the 10,000 towing capacity means you can bring along the family car!

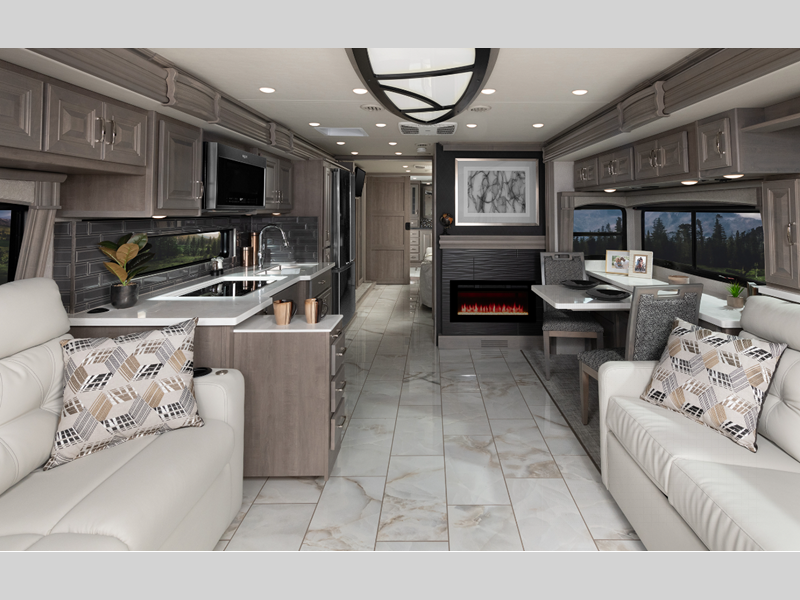

Each is built on a solid foundation, the Freedom Bridge chassis, for better travel and includes a 55-degree wheel cut, and rear V-Ride Air suspension. The interior offers hardwood ceiling feature trim with lighting, hidden hinge cabinet doors, energy efficient LED flush mount ceiling lighting, stainless steel appliances and many more comforts. There are also improved A/C ducts for maximum comfort, brand name appliances, and an Aqua-Hot 400D system provides hot water when you need it!
Choose a Fleetwood Discovery Class A diesel motorhome, and be among the group of RVers that own one of he best-selling RVs around!
-
Discovery 38N
Fleetwood Discovery Class A diesel motorhome 38N highlights: Two Full Bathrooms ... more about Discovery 38N
Have a question about this floorplan? Contact Us
Specifications

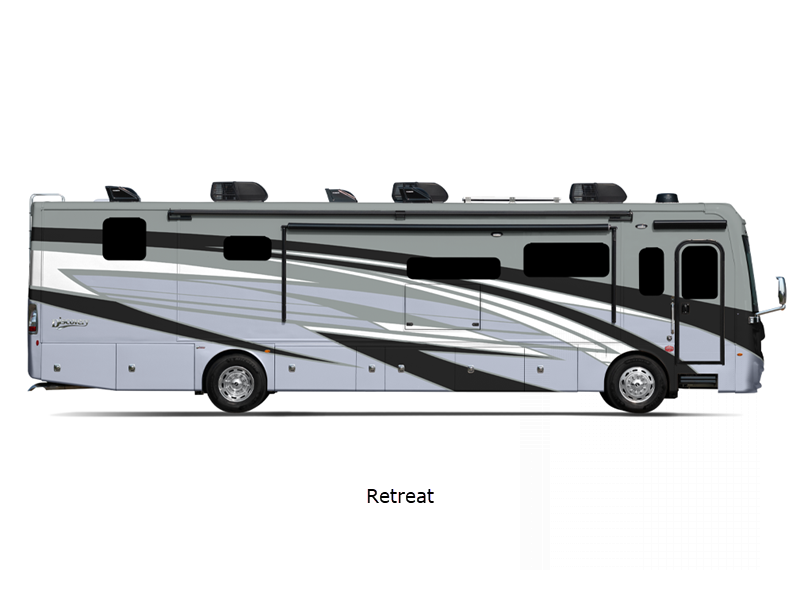

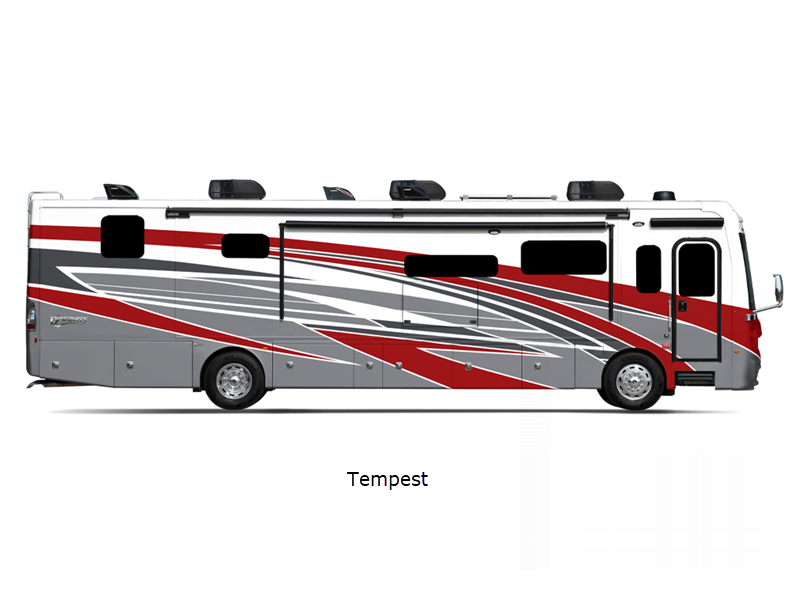

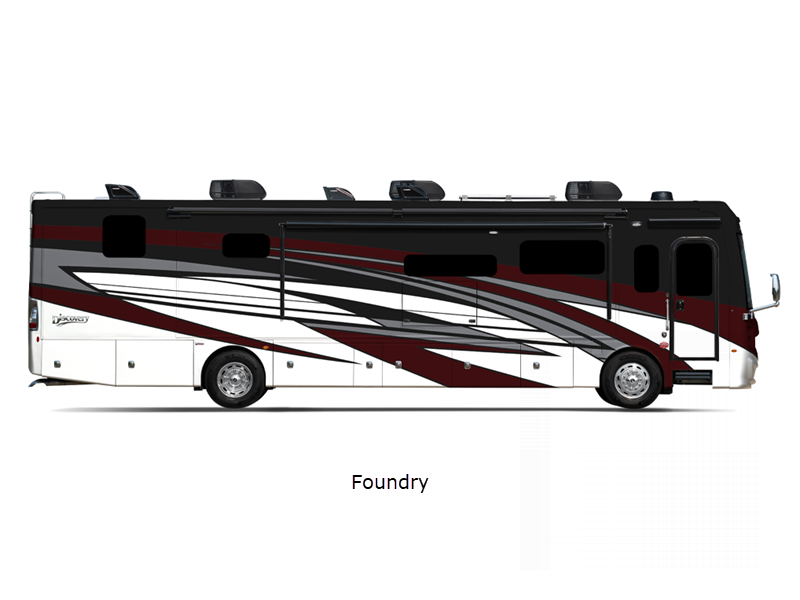

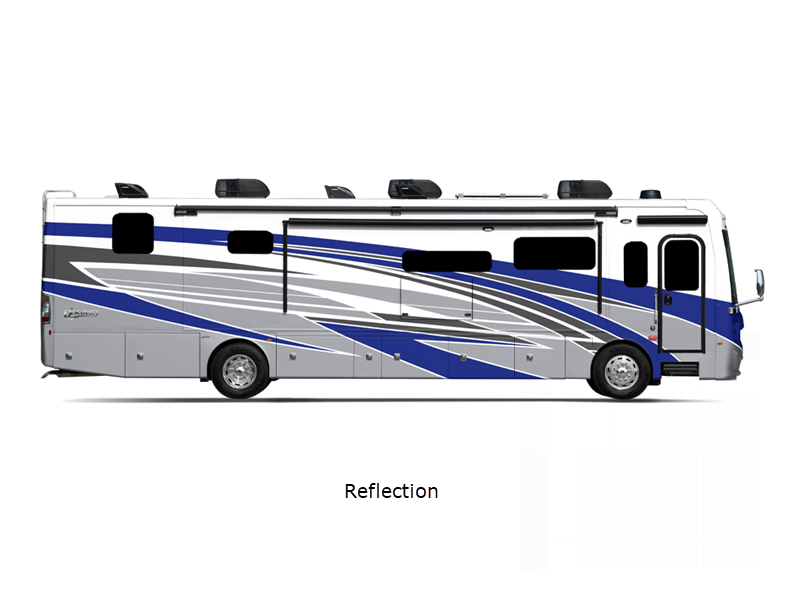

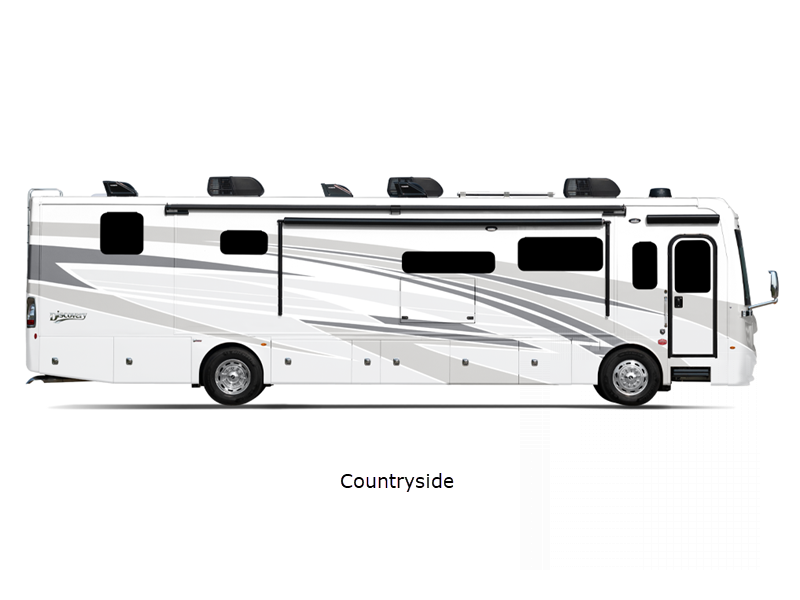

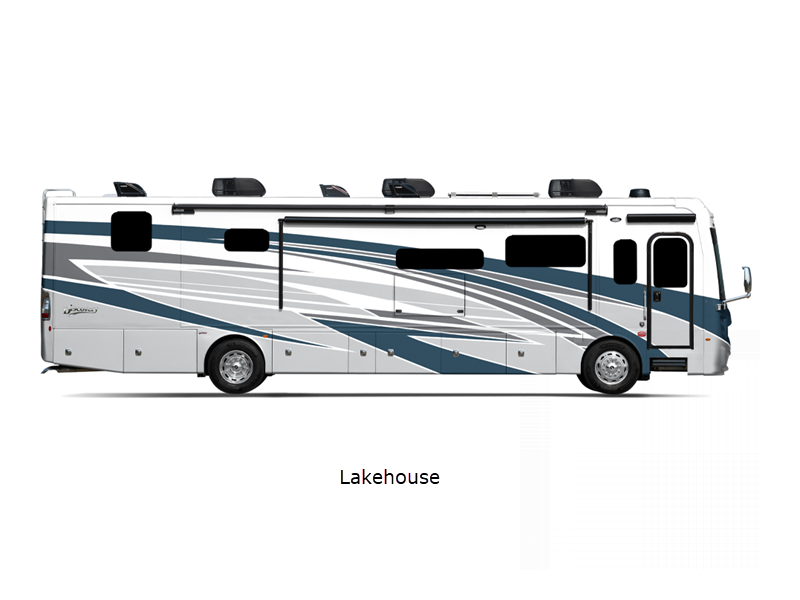

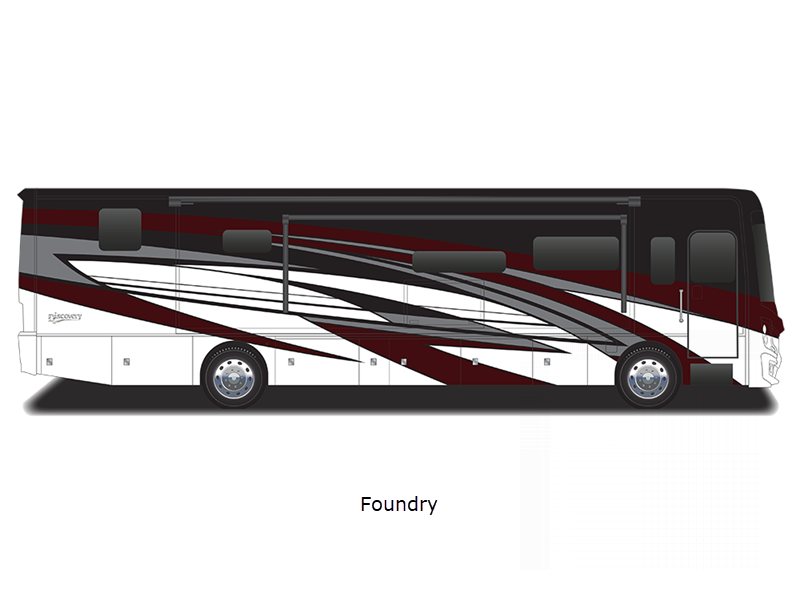

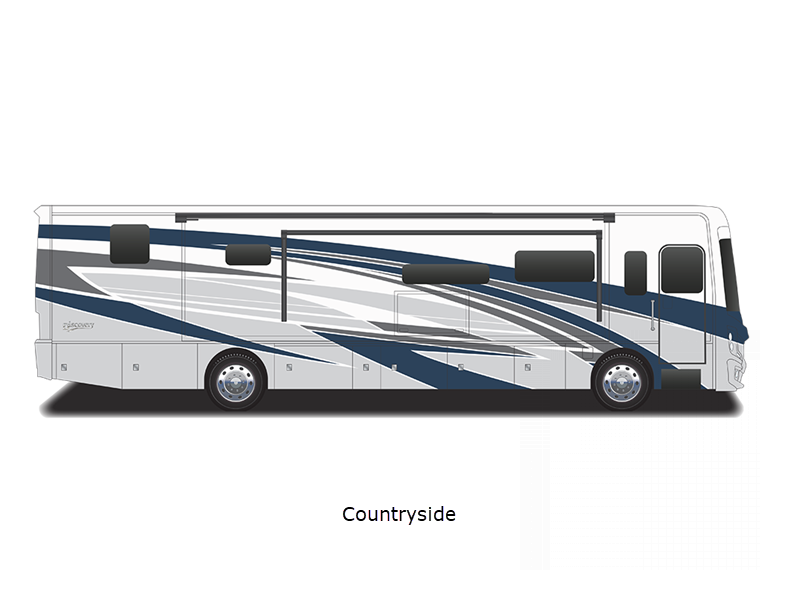

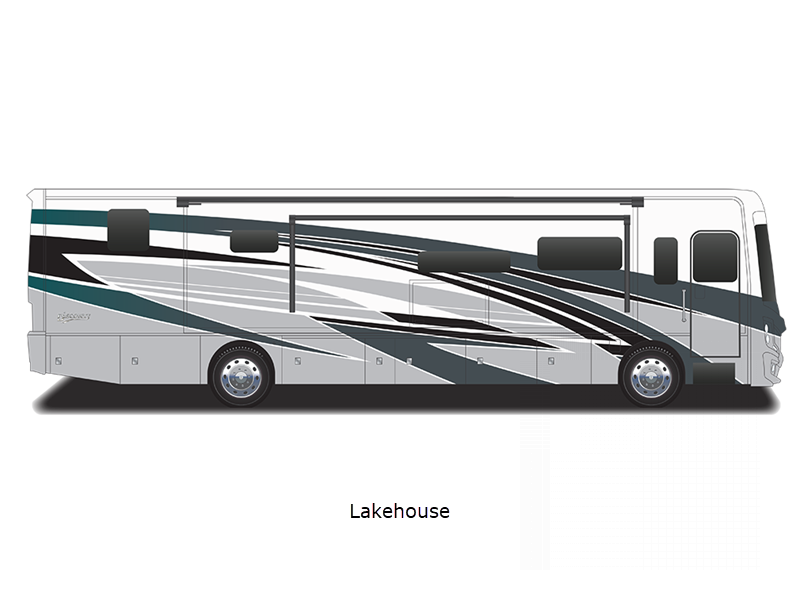

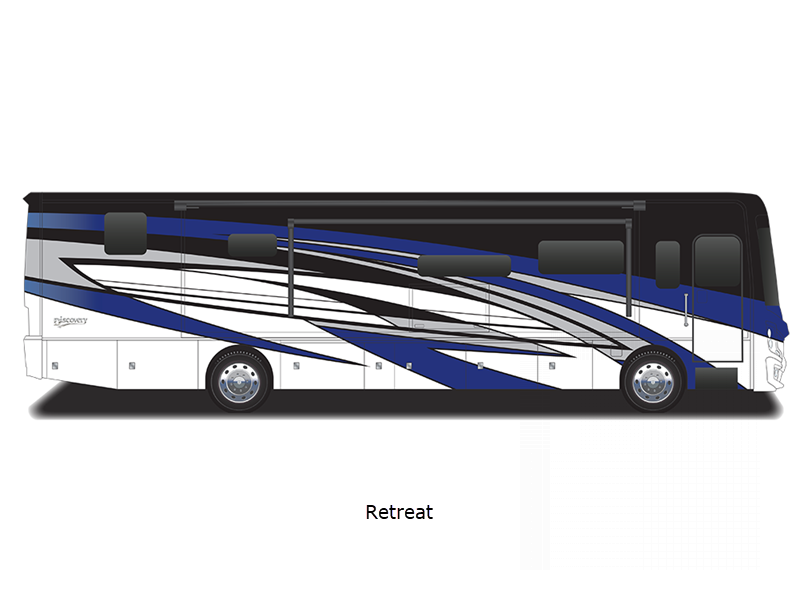

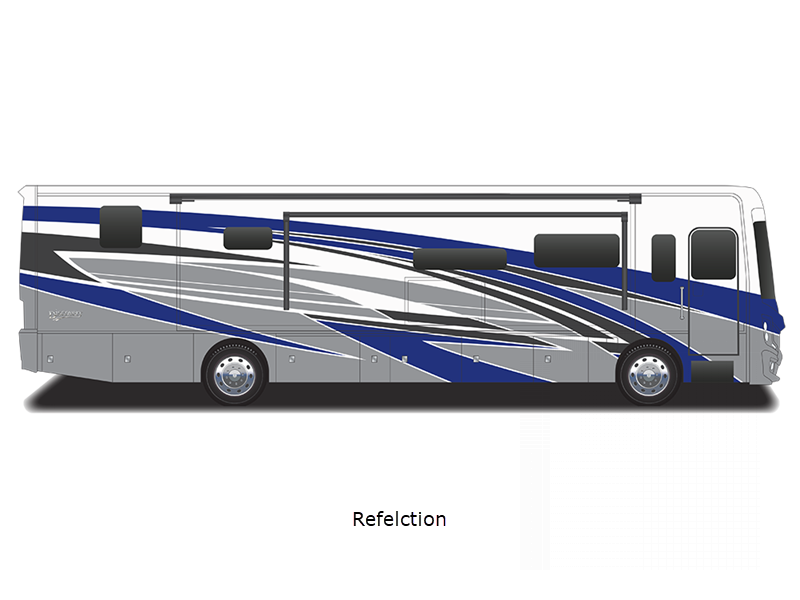

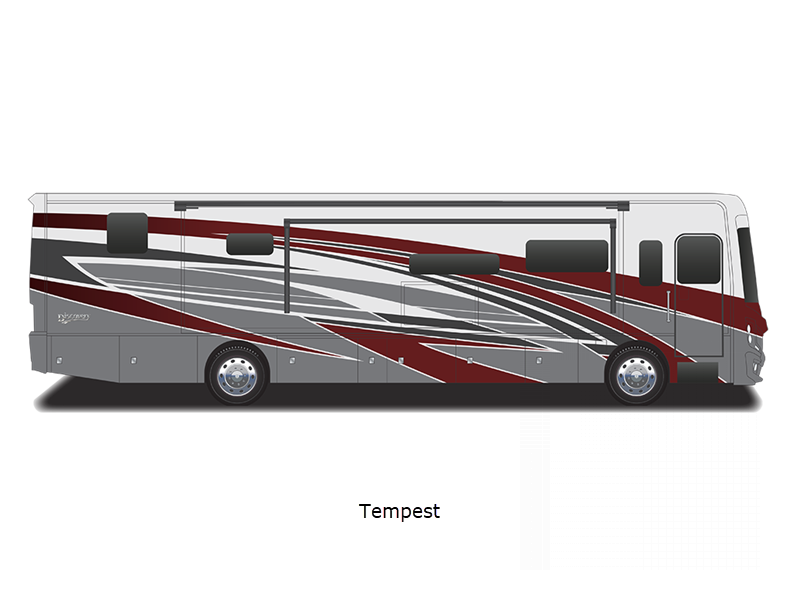

Sleeps 8 Slides 3 Length 38 ft 8 in Ext Width 8 ft 6 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Amaretto, Serenity, Anthology Exterior Color Countryside, Foundry, Lakehouse, Reflection, Retreat, Tempest Hitch Weight 10000 lbs GVWR 33600 lbs Fresh Water Capacity 105 gals Grey Water Capacity 75 gals Black Water Capacity 50 gals Tire Size 275/80R 22.5H Generator 8000W Onan Quiet Diesel Fuel Type Diesel Engine Cummins B6.7 Chassis Freedom Bridge Freightliner XCM Series Horsepower 360 hp Fuel Capacity 100 gals Wheelbase 252 in Number Of Bunks 2 Available Beds King Torque 800 ft-lb Refrigerator Type Stainless Steel Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 50" x 28" Number of Awnings 2 Axle Weight Front 12600 lbs Axle Weight Rear 21000 lbs Water Heater Type Aqua Hot 400 AC BTU 45000 btu Basement Storage 127 cu. ft. TV Info LR LED TV, BR LED TV, Cab LED TV, Ext. LED TV Awning Info 18' Electric w/LED Lighting and Motion Sensor Retract Washer/Dryer Available Yes Gross Combined Weight 43600 lbs Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
-
Discovery 38W
Fleetwood Discovery Class A diesel motorhome 38W highlights: Full and Half Bath ... more about Discovery 38W
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 40 ft 11 in Ext Width 8 ft 6 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Amaretto, Serenity, Anthology Exterior Color Countryside, Foundry, Lakehouse, Reflection, Retreat, Tempest Hitch Weight 10000 lbs GVWR 33600 lbs Fresh Water Capacity 105 gals Grey Water Capacity 75 gals Black Water Capacity 50 gals Tire Size 275/80R 22.5H Generator 8000W Onan Quiet Diesel Fuel Type Diesel Engine Cummins B6.7 Chassis Freedom Bridge Freightliner XCM Series Horsepower 360 hp Fuel Capacity 100 gals Wheelbase 263 in Available Beds King Torque 800 ft-lb Refrigerator Type Stainless Steel Residential Convection Cooking Yes Cooktop Burners 2 Shower Size 50" x 28" Number of Awnings 2 Axle Weight Front 12600 lbs Axle Weight Rear 21000 lbs Water Heater Type Aqua Hot 400 AC BTU 45000 btu Basement Storage 142 cu. ft. TV Info LR Pop-Up LED TV, BR LED TV, Cab LED TV, Ext. LED TV Awning Info 18' Electric w/LED Lighting and Motion Sensor Retract Washer/Dryer Available Yes Gross Combined Weight 43600 lbs Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Discovery Features:
Standard Features (2025)
Chassis
- Freightliner Custom Chassis®
- Chassis Model XCM
- Platform Name Freedom Bridge®
- Engine Cummins® B6.7 Cummins®
- Horsepower 360
- Torque 800
- Transmission Allison® 3000 MH 6-Speed w/ Electronic Shift Control
- Alternator 160 Amp
- Wheel Cut 55°
- Front Tires 275/80R 22.5H
- Rear Tires 275/80R 22.5H
- Front Brakes Air Disc w/ABS Air
- Rear Brakes Air Drum w/ABS
- Front Suspension VFS
- Rear Suspension V-Ride Air
Chassis Components
- Tuned SACHS Shocks
- Push Button Star
- Power Assisted Steering
- BrakeSync (FCCC) (Optional)
- (2)12V Heavy Duty Chassis Batteries
- CSA Package - FCCC (Optional)
- Valve Stem Extensions
- Front and Rear Aluminum Wheels
- Tire Pressure Monitoring System
Construction
- Heated Fresh Water and Holding Tank Compartments (w/Aqua Hot Operational)
- Vacu-Bond Aluminum Framed Constructed Sidewalls, Roof and Floors
- High Density Polystyrene Insulated Sidewalls, Roof and Floor
- Dryseal Edge Coating for all Ceilings,Walls and Floors
- Quiet Insulated, Ducted A/C System
- Painted Steel Frame Chassis Construction
- Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate)
- Electric Slideout Systems
- Full Coverage Heavy Duty Undercoating
- Full Pass Through Basement Storage w/Composite Floor and Wall Construction
- Steel Constructed Entry Step Box
- Powerlock System - Interlocking Floor, Walls and Roof
Exterior
- Exterior Park Cable and Satellite Hookup
- Oversized Dark Tinted Frameless Windows
- Fiberglass Rear Cap Assembly
- Fiberglass Wheel Well Skirts
- Basement Pass-Through Storage
- Side Swing Aluminum Bus-Style Baggage Doors w/Locking Handles
- Full Bay 90" Slide Tray
- Slideout Awning Toppers Above All Slideouts
- Front, Side and Rear Clearance and Marker Lighting
- Porch Light w/Interior Switch
- Fiberglass Front Cap Assembly
- Automatic Hydraulic Leveling Jacks
- Patio Lighting
- Front and Rear Mud Flaps
- Electric Patio Awning w/LED Lighting and Motion Sensor Retract
- Roof Vent Rain Covers
- Lighted Acrylic Grab Handle at Entry Door
- Basement Storage LED Lighting
- Automatic Entrance Steps
- Rear Ladder
- Entry Door w/Radiused Upper, Deadbolt and Screen Door
- King Universal Stationary Satellite
- 4-Color Premier Full Body Paint
- Molded-Fiberglass One-Piece Roof
- 7-Way Round Tow Connection
- Powered Entrance Awning w/LED Lighting
- Satellite Delete (Optional)
- Unidirectional HD On-Air Antenna
- Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves
- Front Cap Generator Access
- Undercarriage LED Lights
- Rear Under Hood Utility Light
Cab Exterior
- Front Mount, Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
- Tinted Slider Driver Window
- Top Mount Automotive Style Windshield Wiper System
- Automotive One Piece Bonded Windshield
- Lower Front Clear Protective Film
- Daytime Running Lights
Interior
- Porcelain Tile Flooring
- Power Motion Lounge (Optional)

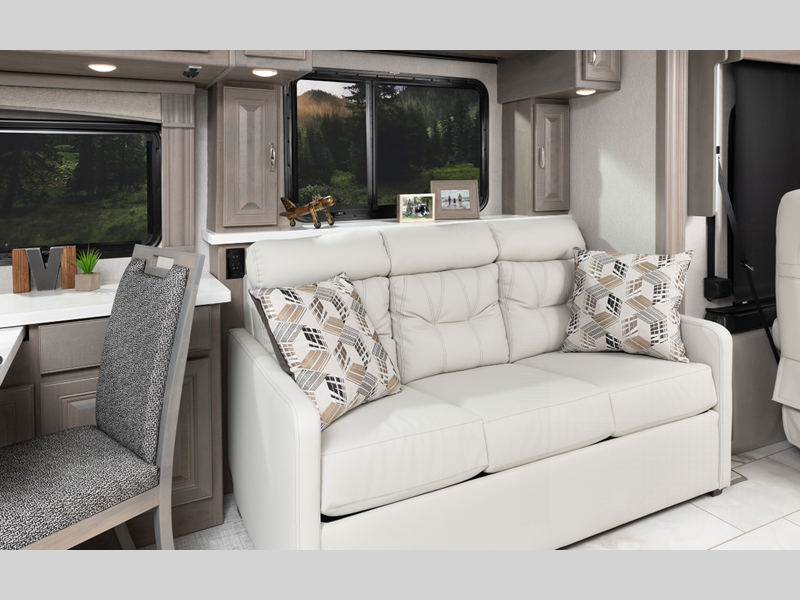

- Sofa w/Full Sleeper Bed (38W Only)
- Sofa w/Twin Sleeper Bed (38N Only)

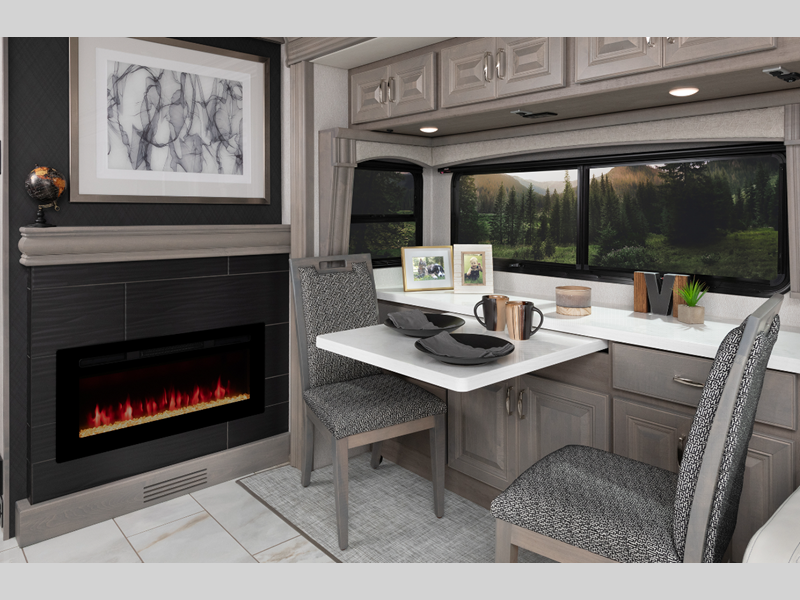

- Electric Fireplace (Living Area)

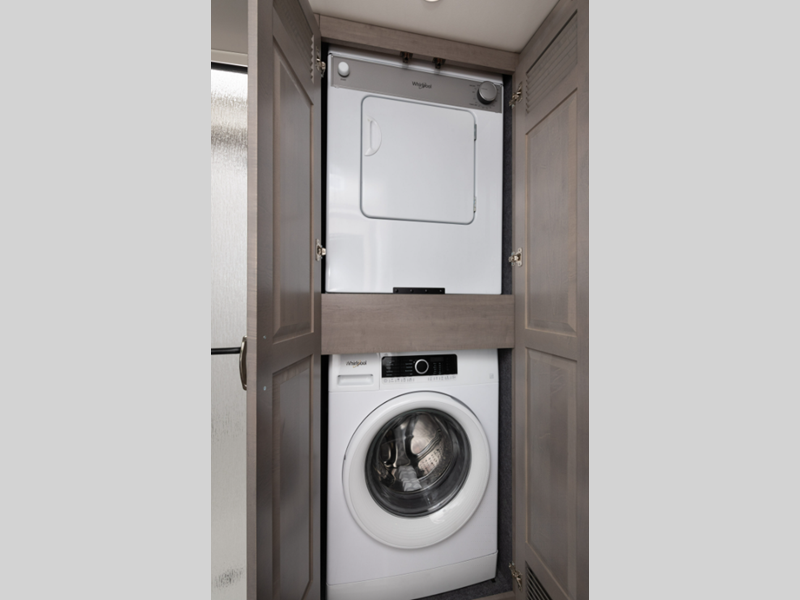

- Stackable Washer and Dryer (38W Only)
- Accent Lighting
- Hardwood Ceiling Feature Trim w/Lighting
- Energy Efficient LED 3" Flush Mount Ceiling Lighting
- 120V/USB Receptacles
- Floor Heat (Living Area)
- Free Standing Dinette w/Credenza (Standard 38W) (Optional 38N)
- Side-By-Side Washer and Dryer (38N Only)

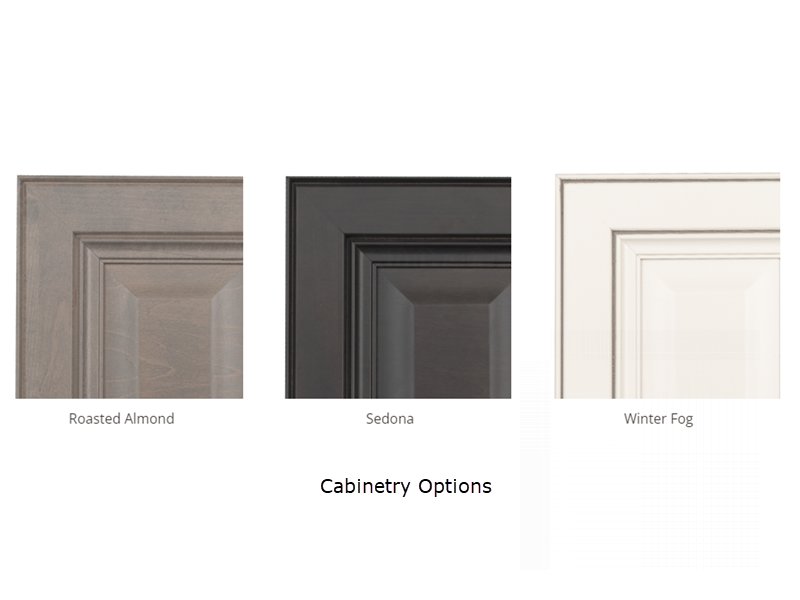

- Select Hardwood Cabinetry
- Interior Soft Touch Vinyl Ceiling
- Loveseat w/Storage (38W Only)
- L-Shape Dinette (Optional 38N Only)
- Facing Dinette Booth (Standard 38N) (Optional 38W)
- Coordinating Window Treatments
- Full Extension Drawer Guides w/Latches
- Manual Day/Night Roller Shades
- Hidden Hinge Cabinet Doors
Interior Entry
- Entry Step w/LED Accent Lighting
- Power Entry Step Cover
- Battery Disconnect Switch at Entry Console
- Metal Interior Grab Handle
Electric and Utilities
- Black Holding Tank San-T-Flush System
- Inverter: Single 2000W Pure Sine w/Remote
- Safe-T-View Camera System
- Sensored Tank Monitoring through Multiplex
- Energy Management System (EMS)
- Service Panel: 50 Amp,120 Volt
- Generator Auto Changeover
- 100W Solar Panel
- Auto Gen Start
- Generator: 8000W Onan Quiet Diesel
- Aqua-Hot 400D
- Air Conditioners:(3)15,000 BTU Roof Mount, Ducted w/Chill Grill and Rear Heat Pump
- Water Accumulation System
- High Capacity Water Pump
- Water Filtration System (Whole Coach)
- Batteries:(4) 6V Deep Cycle House Batteries
- Neutral Loss Protection
- Electric Power Cord Reel
- Transfer Switch w/Surge and Reverse Polarity Protection
- Cable TV/Satellite Hookup
- CO and Smoke Detectors, Fire Extinguisher
- Multiplex Wiring System
- Dual Gravity Water Fill
- Power Converter: 60 Amp
- Central Vacuum System
Kitchen
- Polished Solid Surface Galley Countertop w/Lighting
- Polished Solid Surface Sink Covers
- Stainless Steel OTR Convection Microwave
- Stainless Steel Sink
- Full Extension Drawer Guides w/Latches
- 2-Burner Induction Cooktop
- Residential Faucet w/Pullout Sprayer
- Shadow Box Glass Tile Backsplash w/Window and Shade
- Adjustable Shelving
- Dishwasher (Optional)
- Power Vent
- Stainless Steel Residential Refrigerator
- Pantry Storage
- Waste Basket

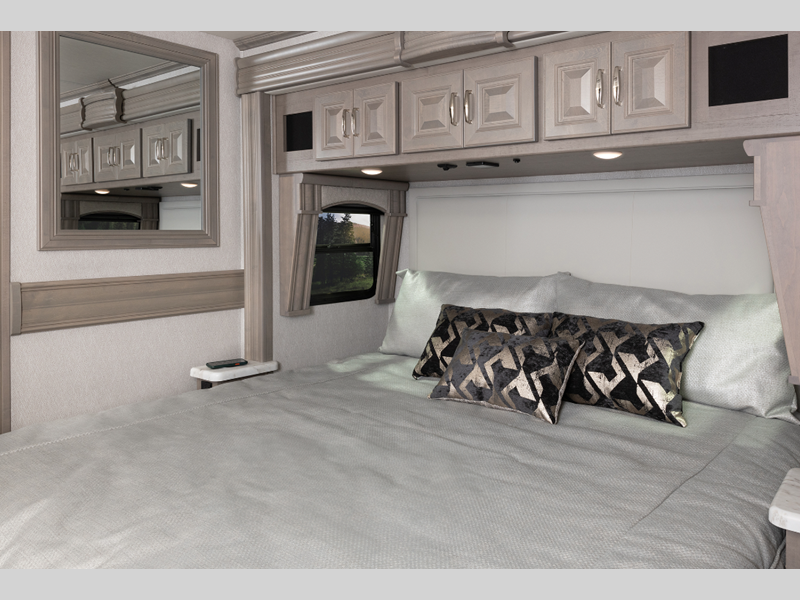

Bedroom/Bunk
- 120V/USB Receptacles at Nightstand(s)
- Individual Reading Lights at Bed Overhead
- Headboard

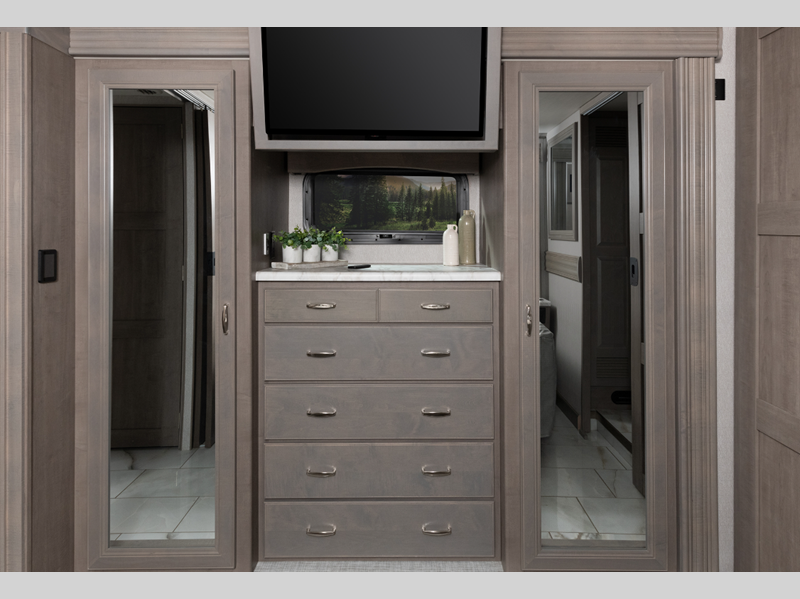

- Spacious Wardrobe Storage w/Hardwood Doors
- Encore Series King Bed
- 28" x 73" Bunk Beds w/4" Foam Mattress (38N Only)
- Designer Bedspread and Pillows w/Shams
- Remote Generator Start Switch

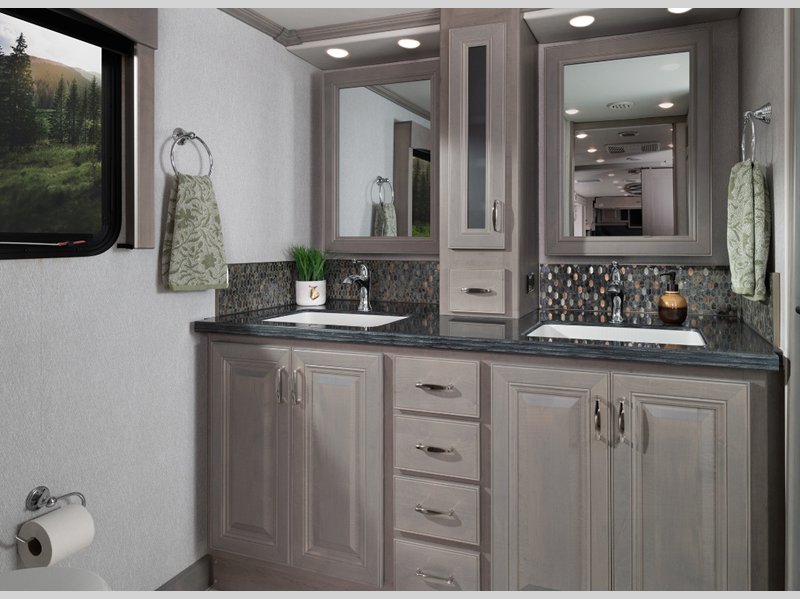

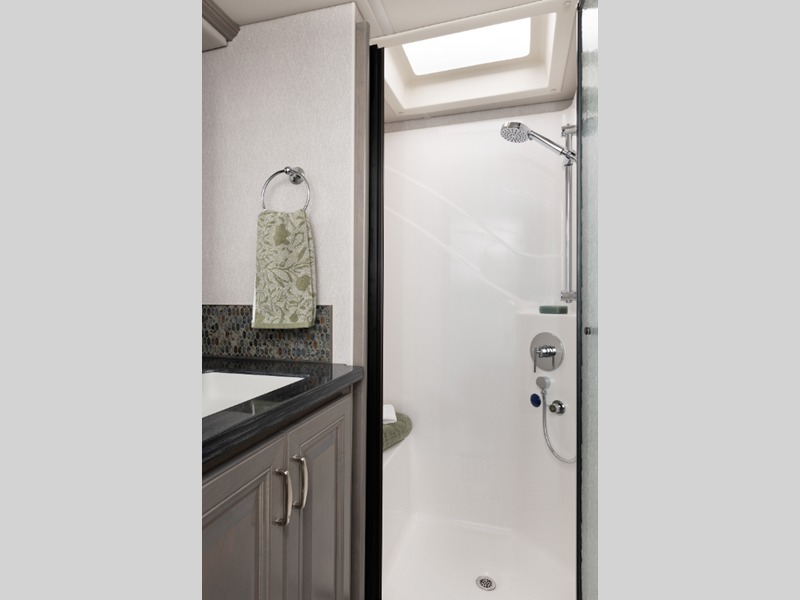

Bathroom
- Medicine Cabinet w/Mirror
- Showermiser
- Towel Ring(s) and Toilet Paper Holder
- Fiberglass Shower
- Porcelain Toilet (38N Only)
- Residential Sink(s)
- Power Vent(s)
- Shower Skylight
- Accent Lighting
- Residential Faucet(s)
- Porcelain Toilet w/Macerator
- Tile Backsplash
- Glass Shower Door
- Designer Shower Head Assembly
- Polished Solid Surface Countertop(s)
Entertainment
- LED TV(Living Area) (Standard 38N) (Optional 38W)
- Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
- LED TV(Bedroom)
- LED TV(Front Overhead)
- Pop-up LED TV(Living Area) (38W Only)
- Soundbar TV Sound System (Living Area)
Cab Interior
- Switch for Exterior Service Lights
- Air Suspension Deflation System
- Driver and Passenger Side Manual Roller Shades and Blinds
- Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV (Optional)
- Color Backup Monitor
- Driver and Passenger Overhead Storage Cabinetry
- 10.2" Stereo w/Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi
- Dash Air Conditioning and Heat
- Passenger Seat w/Reclining Back, Swivel, Heat, 6-way Power Controls and Manual Footrest
- Electric Alert Horn
- Passenger Console
- Radio Switch Main/Auxiliary Power at Dash
- Passenger Seat w/Reclining Back, Swivel, 6-way Power Controls, Heat and Power Footrest (Optional)
- Seat Belts - 3 Point Driver and Passenger
- Momentary Battery Booster Switch - Connecting Chassis and House Batteries
- LED Optiview Instrument Panel
- Automatic Leveling Jacks Touchpad Controls
- Power Locks w/Key FOB Control
- Front Power Roller Blind
- Sirius/XM Satellite Radio Ready (Requires Subscription)
- Driver Seat w/Reclining Back, Swivel, 6-way Power Controls, Heat
- Switch for Power/Heated Mirrors
- Driver Console w/Lower Storage Bin
- Electronic Cruise Control
- 12Vand USB Accessory Ports
- Windshield Wipers w/Delay
- Automotive Style Wrap Around Dash
- 120VAC Outlet at Dash and Passenger Area
- Keyless Entry w/Remotes
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
